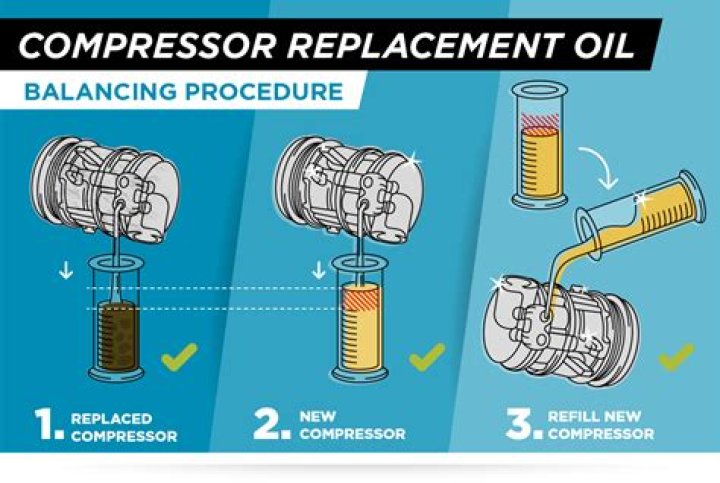

Compressor Replacement What is the correct oil amount? 10 ounces of oil (grey area) When the compressor is delivered to the vehicle assembly plant all the oil is contained in the compressor.

How much oil do I put in compressor?

In the middle of the sight glass, you will see a dot. Ideally, you want the oil level to be in the center of the dot. If the oil level is below the dot, your unit needs more oil. If the oil level is above the dot, you have added too much oil.

How many ounces of oil does a compressor take?

Most new compressors will take about eight ounces. Make sure the correct oil is used and the amount is used. The new compressor may already have oil in it. You could also check for a sticker under the hood stating how much oil and refrigerant the system takes.

Can you add too much oil to AC compressor?

If you add too much oil to the system, it may pool in various places of the system and can coat the inner walls of the evaporator and condenser coils. This will diminish their ability to absorb or dissipate heat, thereby bringing down the overall cooling performance.

How much PAG oil do I add to a new compressor?

Compressor Replacement What is the correct oil amount? 10 ounces of oil (grey area) When the compressor is delivered to the vehicle assembly plant all the oil is contained in the compressor. 10 ounces in this example. The other system components are dry, no oil.

How to fill A.C. Compressor with Pag oil

How do you know if your AC compressor is low on oil?

One of the earliest signs that the AC compressor is operating with an insufficient oil amount is the emergence of humming noises from your air-conditioning system. At the same time, you may notice that the compressor has suddenly become hard to start.

How do I know if I need to add oil to my AC compressor?

With excessive oil, your AC system won't not cool as it should because the flooded oil hinders the flow of refrigerant through the condenser.
...
AC compressor low oil symptoms – Recap

  1. Wearing and scoring on the load-bearing surfaces.
  2. Leakages in the system.
  3. Black smoke.
  4. Noises/smells.
  5. Abnormal system heat.

What happens if you overfill a compressor with oil?

Oil (Lubrication)

While the dangers of too little oil are obvious, it's also important not to overfill a compressor with oil. If the oil level is too high the oil can get whipped and it will foam up, losing some of its lubricating properties. In addition, it will gain volume, further increasing your problems.

How much oil does a 60 gallon air compressor take?

Horsepower (HP) 3.2 Tank Outlet Size 3/4 NPT Number of Cylinders 2 Oil Capacity approximately 8.5 ounces Voltage 230 / 240 Volts, 15 Amps Length 20 in. 60 Hz, 1 Phase Width 20 in.

How do I know if I have too much oil in my AC?

Inefficient Cooling

The most glaring sign of an overfilled AC system is poor cooling because an internal coating forms resulting in reduced heat transfer. For instance, you might notice that it's taking way too long to cool things or your windows stop defogging properly.

How much oil does a central pneumatic air compressor hold?

Oil Capacity 5.6 oz.

Can low oil cause AC to stop working?

Inadequate oil lubricant. To take the heart comparison a step further, think of your air conditioner's oil lubricant like the blood in your body. If there's not enough, the system can't work properly and all kinds of problems can result, including AC compressor failure.

What causes a compressor to lose oil?

Short cycling occurs when the compressor pumps more oil than normal. Short cycling, caused by many conditions — low head pressures, low refrigerant charge, improper differential setting of the low-pressure control, or leaking of the liquid solenoid valve – can cause the oil control to trip.

Do I need to add oil after replacing condenser?

When replacing a part like the condenser it is a good idea to add some extra oil with the new refrigerant. Most refrigerants do have some oil in them which should be enough. The majority of the oil in the system stays in the compressor so you should not have any issues if you do not add any more.

What weight PAG oil should I use?

There are different viscosities of PAG oil being used by OEMs: PAG 46, which is the most popular; PAG 100, which is also common; and PAG 150, which is more rarely used. FJC offers PAG oils in all three viscosities, and also offers each PAG option with Extreme Cold or Fluorescent Dye additives.

What kind of oil goes in AC compressor?

PAG is actually an acronym for Polyalkylene Glycol, and it is a synthetic oil used in A/C systems to lubricate the compressor. Most all newer model cars use PAG as the lubricant in the A/C system.

How much oil does a receiver drier?

The manual states 5.4 oz total. Too much oil will increase discharge air temp.

What color is AC compressor oil?

Refrigerant or PAG (synthetic compressor) oil is clear, he explains. Over time, it picks up moisture and turns acidic, eating away at the condenser, thermal expansion valve, evaporator, fittings, compressor and other metal components. Gradually, the oil turns yellow and darkens as it picks up particles and sludge.

Do I need to add oil after evacuating AC?

To answer the question title, yes, you will have to add oil to the new refrigerant. Failure to do so will shorten the useful life of the A/C compressor's bearings through lack of lubrication. This will invariably lead to premature death of the compressor.
